HF Acid in Glass Manufacturing: Background and Objectives

Hydrofluoric acid plays an irreplaceable role in glass manufacturing by selectively reacting with silicon dioxide to break structural siloxane networks, enabling high-precision surface frosting, deep chemical polishing, micro-channel formation, and silica purification.

Glass processing relies heavily on the unique reactive chemistry of hydrofluoric acid. Unlike conventional mineral acids such as hydrochloric, nitric, or sulfuric acid, hydrofluoric acid reacts directly with the silica (SiO2) framework that constitutes the structural backbone of silicate glass. The reaction produces soluble fluorosilicic acid (H2SiF6) or gaseous silicon tetrafluoride (SiF4), effectively dissolving superficial glass layers at controlled, microscopic rates. In modern industrial glass processing, precise application of hydrofluoric acid allows manufacturers to alter optical transmission, introduce anti-glare micro-textures, strip oxide impurities, and eliminate micro-fissures that compromise mechanical tensile strength.

The strategic objective of incorporating hydrofluoric acid into industrial glass manufacturing spans multiple technical fronts. In float glass and technical glass fabrication, surface defects and micro-cracks formed during mechanical cutting or thermal forming serve as stress concentration points. Etching the glass surface with controlled hydrofluoric acid baths smooths out these microscopic imperfections, dramatically increasing the structural bend strength of the final glass substrate. Furthermore, in specialized quartz sand and silica glass refining, hydrofluoric acid washing selectively leaches out trace metallic impurities, oxide inclusions, and heavy metal contaminants without degrading the ultra-pure silica lattice. This chemical refining process is critical for producing semiconductor-grade quartzware and high-transmittance optical fiber preforms.

When selecting raw chemicals for industrial manufacturing pipelines, sourcing high-purity chemical agents ensures consistent etch rates, predictable reaction kinetics, and reproducible surface roughness metrics across large-scale production batches. Manufacturers typically utilize certified industrial grade hydrofluoric acid formulated at controlled concentrations to maintain process repeatability and minimize bath contamination in continuous processing lines.

From an engineering standpoint, industrial glass production systems are customized to match customer requirements regarding surface haze, light diffusion, and gloss reduction. In European markets, automotive display panels and high-end architectural facades favor ultra-fine chemical frosted finishes that maintain touch sensitivity while completely eliminating ambient specular reflection. Achieving these exact properties depends on modulating hydrofluoric acid concentration, bath temperature, immersion duration, and the addition of ammonium bifluoride or sulfuric acid buffers within the chemical bath.

Operational Principles: The fundamental chemical mechanism governing hydrofluoric acid glass dissolution proceeds via a two-stage fluorination reaction: first, HF molecules adsorb onto siloxane bonds (Si-O-Si) on the glass surface, forming silicon fluoride complexes; second, excess hydrofluoric acid reacts with these intermediates to generate hexafluorosilicic acid (H2SiF6), which dissolves into the aqueous phase and exposes a freshly etched, defect-free silica layer.

Market Analysis of HF-Processed Glass Products

Market demand for hydrofluoric acid processed glass is experiencing sustained global growth driven by expanding applications in consumer electronics displays, architectural anti-glare glazing, solar energy covers, and high-purity laboratory apparatus.

The global market for chemical-etched and surface-modified glass products continues to expand rapidly across diverse industrial sectors. In display technology, smartphone screen covers, automotive touch dashboards, and interactive digital signage demand ultra-smooth, anti-glare (AG) and anti-fingerprint (AF) textures. Mechanical sandblasting or physical abrasion creates uncontrolled surface micro-fractures that degrade display clarity and weaken structural durability. Consequently, chemical etching using hydrofluoric acid solutions remains the premier technology for producing uniform, micro-textured glass surfaces that balance high optical clarity with anti-reflective visual properties.

In the renewable energy and architectural sectors, specialized glass substrates treated with hydrofluoric acid formulations are vital for optimizing light absorption and energy efficiency. Photovoltaic (PV) module covers utilize chemically textured front glass to minimize reflection losses, allowing greater photon penetration into solar cells and boosting total conversion efficiency. Similarly, energy-efficient building facades utilize hydrofluoric acid frosted glass panels for interior lighting diffusion, privacy partitioning, and decorative aesthetic appeal without sacrificing structural strength or weather resistance.

To support high-throughput industrial glass processing, chemical supply networks deliver concentrated chemical reagent options directly to manufacturing facilities. Sourcing reliable hydrofluoric acid chemical solutions ensures robust raw material availability for large-scale continuous dip tank, chemical spray, and quartz washing operations.

Industrial trends highlight a strong preference among European and North American buyers for environmentally compliant, fully closed-loop hydrofluoric acid glass etching systems. Automated chemical processing equipment equipped with real-time acid concentration monitoring, automated chemical dosing, and integrated scrubbers satisfies stringent local environmental regulations while maximizing yield efficiency.

Customer configuration choices reflect these strict requirements: European manufacturing plants predominantly specify automated acid etching lines configured with integrated fluorosilicic acid recycling modules, whereas Asian processing hubs often prioritize high-volume continuous conveyor spray etching systems designed for maximum hourly unit output.

Maintenance Guidelines: To maintain consistent glass etching quality across high-volume production cycles, hydrofluoric acid bath compositions must be continuously monitored using automatic titrators or density sensors; precipitate buildup of sodium or potassium fluorosilicates must be filtered continuously out of the bath through acid-resistant polypropylene mesh filter units to prevent pinhole surface defects on etched glass sheets.

Technical Challenges and Safety Constraints in HF Implementation

Implementing hydrofluoric acid in manufacturing facilities introduces severe chemical safety and engineering constraints due to its UN 1790 hazard classification (Category 8+6.1), extreme corrosive toxicity, and severe systemic health risks upon skin exposure.

Integrating hydrofluoric acid into industrial glass manufacturing infrastructure requires comprehensive hazard mitigation strategies and uncompromising engineering controls. Hydrofluoric acid presents unique chemical hazards compared to other industrial acids. Unlike strong acids that cause immediate surface chemical burns upon contact, liquid hydrofluoric acid readily penetrates skin, tissue, and cell membranes. Once inside human tissue, fluoride ions bind rapidly with systemic calcium and magnesium ions, precipitating insoluble calcium fluoride and causing deep tissue necrosis, severe hypocalcemia, organ failure, and cardiac arrest if unmanaged. Consequently, industrial implementation demands rigorous physical containment, specialized personal protective equipment (PPE), and mandatory onsite medical treatment protocols including calcium gluconate gel applications.

From a materials engineering perspective, hydrofluoric acid severely attacks standard construction materials such as glass, concrete, silicon, carbon steel, and traditional metallic alloys. Process piping, storage tanks, valve bodies, and pump housings must be fabricated exclusively from high-performance fluoropolymers (such as PTFE, PFA, PVDF) or specialized polypropylene materials. Chemical storage systems must accommodate strict regulatory parameters dictated by Danger Category 8 (Corrosive) and Category 6.1 (Toxic) classifications under international hazardous transport and storage regulations (UN 1790).

To maintain plant safety while handling continuous chemical supplies, facility managers must establish rigorous receiving protocols for bulk acid shipments. Utilizing fully certified industrial grade hydrofluoric acid supplies shipped in UN-approved heavy-duty polyethylene drums or ISO tank containers ensures chemical integrity and compliance with hazardous transport laws.

Industrial clients in regulated regions evaluate glass processing machinery based on built-in safety features, automated leak detection sensors, and emergency shutdown mechanisms. Facilities operating in North America and Western Europe universally demand fully automated chemical transfer systems that eliminate manual drum handling or open acid pouring, utilizing vacuum-assisted dry-disconnect couplings during drum changing operations.

Product feature inquiries frequently center around how equipment design minimizes chemical consumption while ensuring total worker safety. Machinery designed with sealed etching enclosures, automated robotic glass rack loaders, and integrated air scrubbers represents the preferred standard for modern high-tech glass processing factories worldwide.

Safety Tips: All personnel operating near hydrofluoric acid glass etching stations must wear full-face heavy-duty neoprene shields, fluoropolymer-coated aprons, heavy butyl rubber chemical gloves with inner cotton liners, and steel-toe rubber boots; in the event of suspected acid exposure, immediately flush the affected area with clean water for 2 minutes and massage calcium gluconate 2.5% gel continuously into the skin until medical assistance arrives.

Current HF Acid Etching and Processing Methodologies

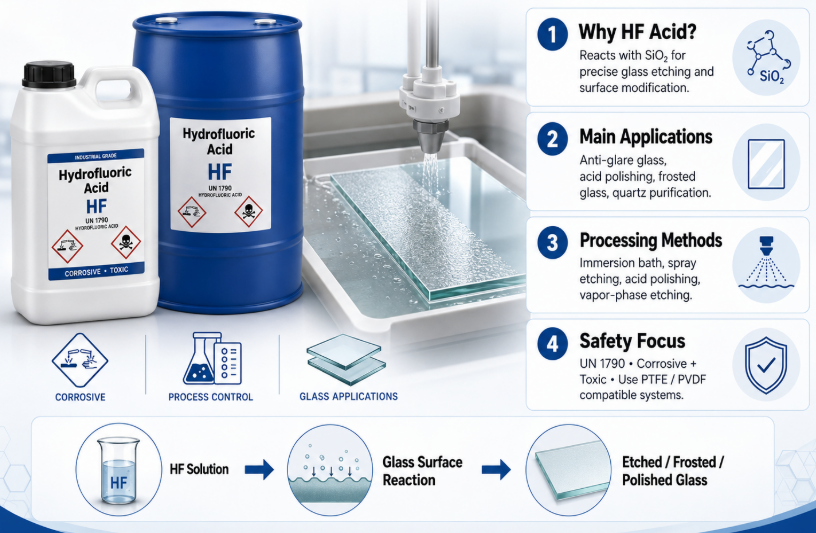

Modern hydrofluoric acid glass processing utilizes four main industrial methodologies: immersion bath etching, automated spray processing, acid polishing, and vapor-phase quartz purification, each tailored for specific glass geometries and surface finishes.

Industrial implementation of hydrofluoric acid in glass fabrication relies on precise operational methodologies engineered to achieve consistent surface finishes while managing hazardous chemical side products. The primary chemical methodology is immersion bath etching (dip processing). In this process, glass sheets or components are mounted onto fluoropolymer-coated racks and submerged into a temperature-controlled bath containing hydrofluoric acid combined with ammonium bifluoride, sulfuric acid, or fluoride salts. The addition of ammonium bifluoride controls micro-crystal deposition during etching, producing a uniform, satin frosted finish widely used for diffuse architectural glass and frosted lighting covers.

For thin-glass display applications, continuous automated spray etching represents the state-of-the-art processing standard. Glass panels travel along horizontal roller conveyors inside a sealed, negative-pressure processing chamber. Arrayed oscillating spray nozzles deliver a precise mist of dilute hydrofluoric acid solution onto the top surface of the moving glass. This continuous mechanical agitation sweeps away reaction products and fluorosilicate precipitates, delivering ultra-uniform etch depths across large substrate dimensions with microscopic precision.

Another essential industrial process is acid polishing, commonly applied to cut crystal, optical lenses, and high-end glass tableware. Mechanical grinding and cutting leave severe micro-abrasions and micro-cracks on glass edges. Submerging ground glass articles into a concentrated hydrofluoric acid and sulfuric acid bath (typically 30% HF / 60% H2SO4) selectively dissolves raised sharp ridges and micro-fractures, smoothing the glass surface to a crystal-clear, high-gloss optical polish.

To optimize cost performance and process efficiency, industrial glass manufacturers select etching equipment based on energy efficiency, acid recirculation rates, and chemical consumption metrics. Plant operators frequently inquire why specific acid tank configurations are designed with inclined bottom floors and continuous recirculation pump filters; this configuration prevents heavy fluorosilicate sludge from settling on tank bottoms and causing inconsistent flow dynamics during continuous etching runs.

Furthermore, European customers strongly favor modular etching systems configured with integrated calcium hydroxide neutralization plants. These auxiliary units automatically pump spent etching bath liquid to a treatment tank where slaked lime neutralizes residual hydrofluoric acid, forming insoluble calcium fluoride sludge that can be safely dewatered in filter presses and disposed of according to industrial solid waste regulations.

Working Principles: Acid polishing relies on the synergistic action of hydrofluoric acid and concentrated sulfuric acid: hydrofluoric acid continuously reacts with and dissolves the silicate glass matrix at microscopic sharp micro-cracks, while sulfuric acid acts as a strong dehydrating agent that absorbs water generated during the reaction, maintaining maximum HF reactivity and keeping generated fluorosilicic salts in solution to ensure a defect-free, mirror-polished glass surface.

Conclusion

Implementing hydrofluoric acid in glass manufacturing requires a comprehensive operational strategy that bridges reaction chemistry, advanced equipment engineering, and rigorous safety management. Hydrofluoric acid remains an essential chemical reagent in modern glass processing, enabling precision surface frosting, anti-glare display texturing, optical edge polishing, and high-purity quartz refining that cannot be replicated by alternative mechanical methods. By implementing closed-loop chemical delivery systems, fluoropolymer-lined processing equipment, multi-stage exhaust scrubbers, and strict UN 1790 safety protocols, glass manufacturers can achieve exceptional product quality, precise surface finish repeatability, and total compliance with global environmental standards.
